Product description

Belt conveyor is a kind of machine that to transfer the material continuously.The belt works under the effect of frictional force.It is not only the components to transfer the material,but also the components to transfer the force.The belt conveyor is advance and simple in structure,easy to maintain.its transfer capacity is high,transfer distance is long.they are widely used in mining.metallurgical and coal industry to transfer sandy or lump material,or packaged material.In many situation,it is a very important component of nonstandard machinery.

Feature

1.The table specified capacity is relative to crushed stone with loose volume density 1.6t/m. 2.Belt inclined angle should less than 18°; the accumulating angle is 30°. 3.The belt conveyor is suitable for materials whose density is below 2.5t/m³ 4.The length of the belt is not limited to the data in the table. It can be customized.

Structure

The conveyors are mainly composed of conveyor frame, belt, roller, transmission device and so on. The frame is made of high-quality steel.The frame is equipped with belt roller or carrier roller to support conveyor belt. In the drive unit, there are gear motor drive and motor pulley drive. Which are advanced and simple in structure, easy to maintain. The Belt Conveyors can be operated in the circumstance temperature range from -20℃ to +40℃. The temperature of transferred material by this Belt Conveyor should be lower than 50℃.

Application

They are widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material. According to different transferring equipment, the transfer system can be one independently or multi-conveyors or combined with other transfer equipments. The Belt Conveyor can be installed horizontally or aslope to meet the needs of different transfer lines.

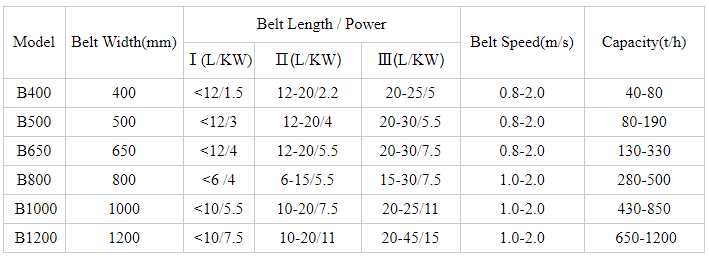

Technical parameter
