Product description

Mixing tank is the indispensable equipment to fully mix the reagent and the ore pulp, increase the reaction time of the reagent and strengthen the quality of the reagent reaction. This machine is suitable to be used in ore beneficiation industry and also for stirring the ingredients in all various industries. Direction for the use of mixer: Before use fasten the bolts of the pump part, turn the belt wheel of the.pump bearing to see whether it is flexible, and start the machine. Quick-wear parts: impeller, stator.

Main Features

1) Compact structure, good seal, and feed port settings the block gray board, to prevent the mist playing. 2) The nozzle is multi-rank; the water volume is even and can be adjusted. 3) Stir mixing blades fanned when stirred media contact area. 4) Leftover ash and low setting box at the bottom of the watershed to ensure that the equipment have no dead ends. 5) Mine mixing tube equipment advanced performance, the quality of the finished product is stable, stir rapid discharge.

Structure

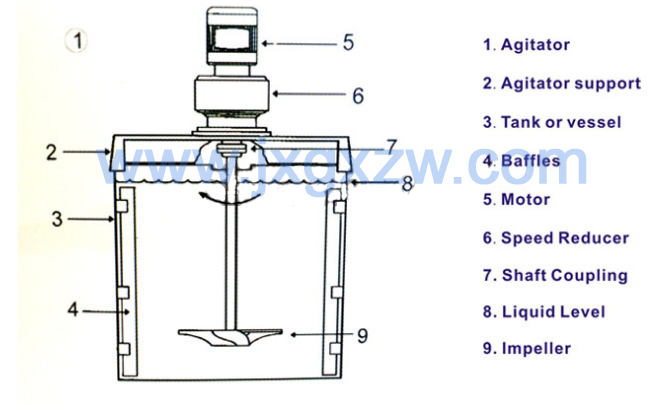

Mixing tank is mainly consisted with Agitator support, tank or vessel. Baffles, motor, speed reducer, shaft coupling, liquid level, impeller and other components. The product is suitable for 30% slurry, the solid composition of ore particle size ≤ 1mm. When the machine works, under the rotation of the impeller, the ore pulp and the reagents will have big and small circulation, and they will be evenly mixed, and the mixed suspension liquid will be discharged from the overflow port.

Application

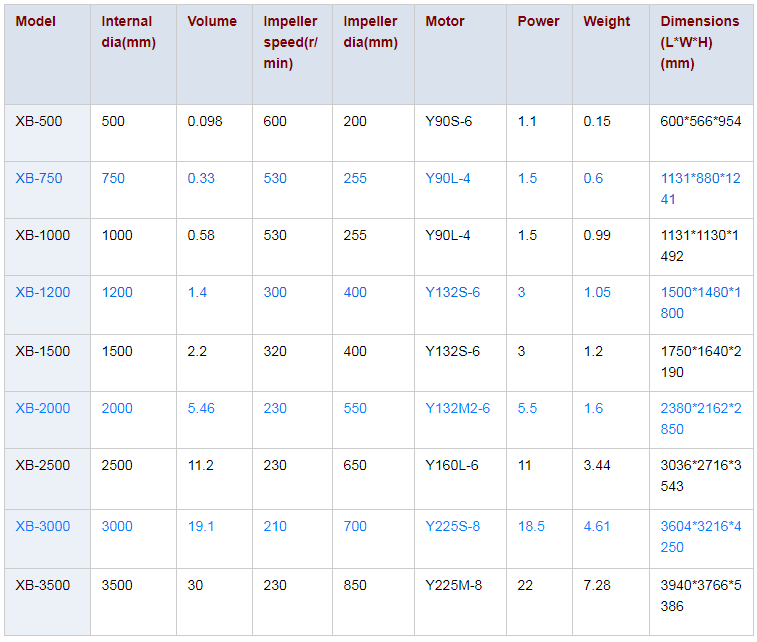

Suitable to all kinds of metal ore & nonmetal ore. especially for the mixing before the ore dressing. Which is just the full mixing of pharmaceutical and sufficiently slurry can also be the mixing of the other nonmetal material. The using concentration cannot be greater than 30% ( by weight) The particle size of the fixed component is less than 1mm. The form of it is the flat bottomed bucket radiation cycle with the spiral impeller mechanical agitation. Technical paratmeters
