Product Description

Spiral chute is our company's concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating sand ore in beach, riverside, seashore and stream.It is the domestic advanced level, the new highly effective equipment.

Main Features

Spiral chute is made of the fiberglass lined with wear-resistant polyurethane and corundum cover; The advantages are light, moisture proof, anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. 1) Stable structure, Easy set up. 2) High recovery ratio, high efficiency. 3) Light in weight, Small space. 4) Precise separation, Low operating cost. 5) High adaptability to fluctuation of feeding amount, density, size and grade .

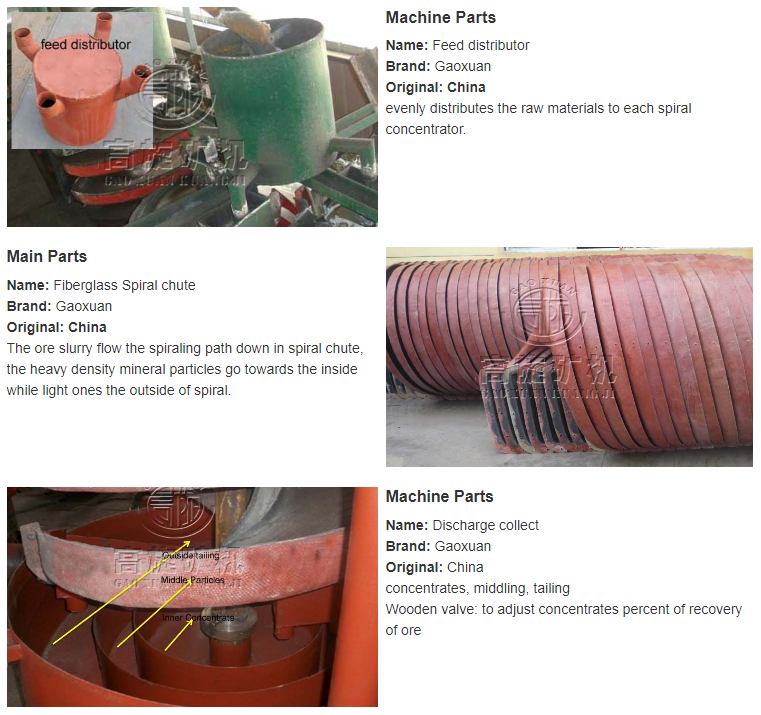

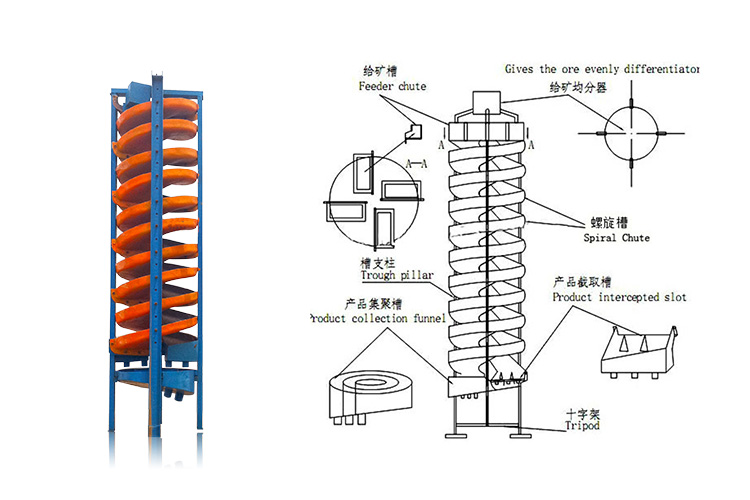

Machine Parts

Application

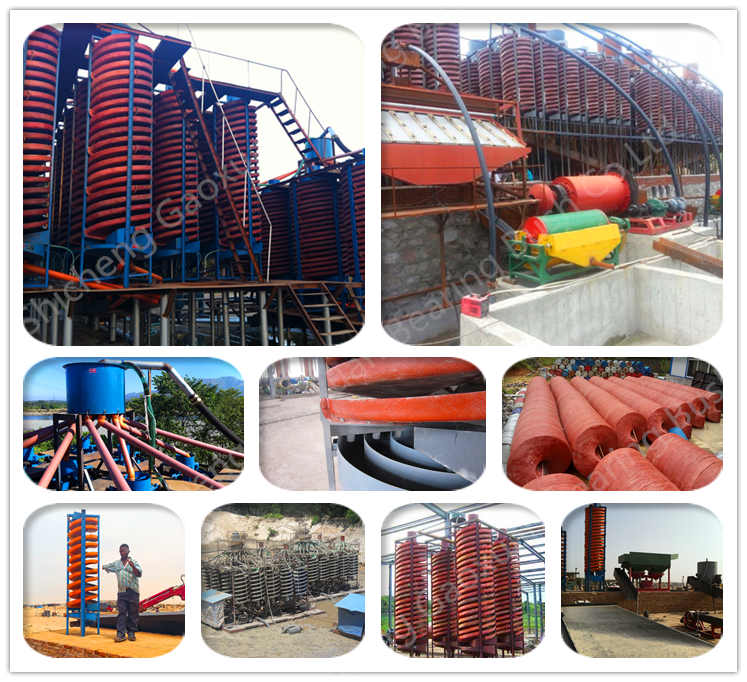

Gravity mining machine spiral chute concentrator/separator is applied for processing iron, tin, tungsten, tantalum, niobium, gold, coal, monazite, rutile, zircon and other metal, nonmetal minerals with enough specific gravity dispersion of granularity ranged from 0.02 to 0.3mm. It's also used for gold placer, seashore monazite, rutile and zircon as well as sand ore in beach, riverside, seashore and stream.

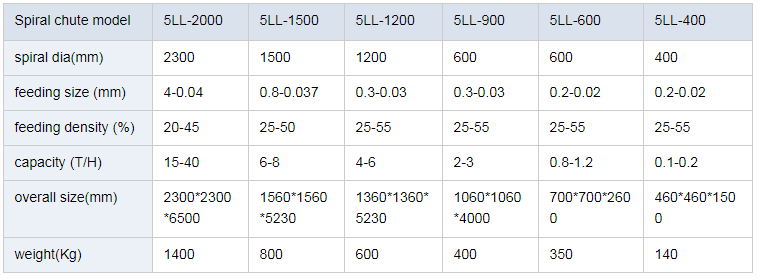

Technical Parameter
