Product Description

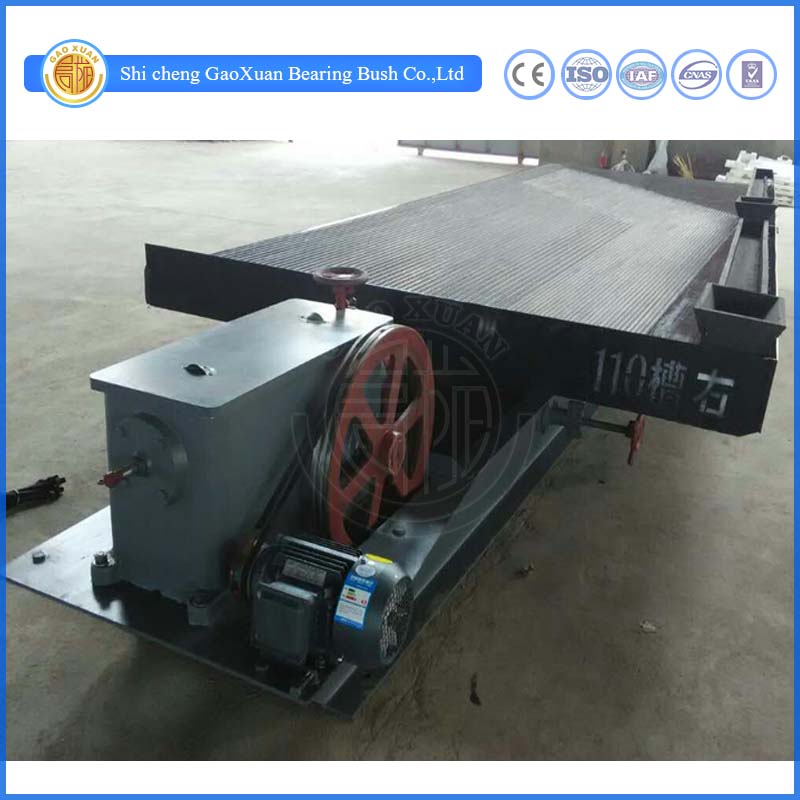

6s Shaking table is one of most commonly used mineral beneficiation equipment,although the processing abilitybased on unit area of shaking table is low,but its effective particles size sorting could be up to 0.037mm limit,the interval grill of table surface is very clear and machine operating is easy.Shaking table could continuously sort concentrate ore,second grade ore and tailings,it is very important ore sorting equipment.

Structure

Shaking table is made of machine head,motor,adjustingradient device,bed,bunker,water tank,rifle bar and lubrication system.

1. Head Motion 6s Gold shaking table cast iron to contain an oil reservoir for perfect splash lubricaion. This feature protects the moving parts, reducing the operating and maintenance cost to minimum.

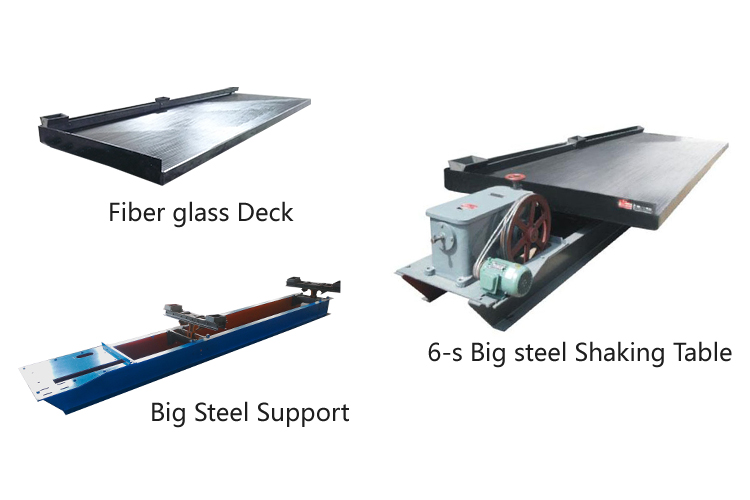

2. Decks 6s Shaking Table have three distinct deck designs available. Course ore deck is designed for recovering particles size from 0.5 mm to 2 mm; Fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; Slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm.

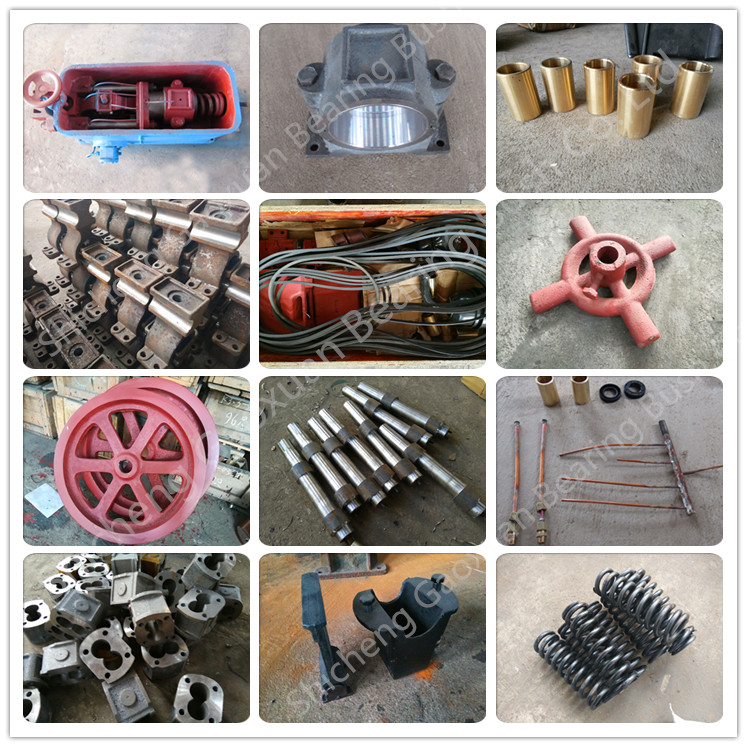

3. Spare Parts or Wearing Parts of shaking table

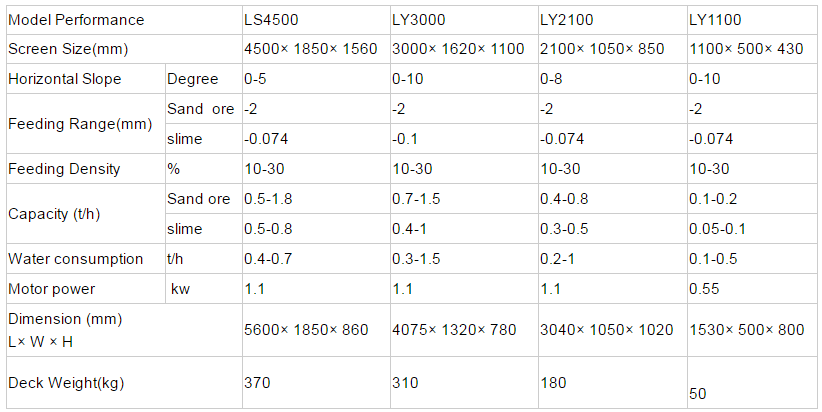

Technical Parameter

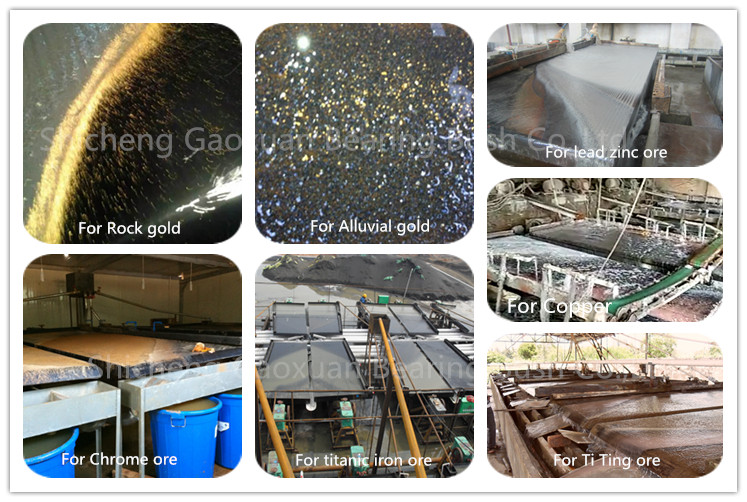

Application

6s Shaking Table is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome,Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.037 millimeters.

Packaging & Shipping
