Product Description

The rotary scrubber is an autogenous rotating drum scrubber, utilising pebbles and rocks within the feed source to fracture and disintegrate clays, agglomerates and soft oxides. Disintegrated material is homogeneously slurried within the drum, whilst the autogenous load is retained within the drum by reverse flights located at the drum discharge end. Slurry and washed oversize overflows the drum discharge throat to the concentric exit trommels.

Features

1.Designed to break up alluvial gravels, clays and sand 2.High capacity and high power scrubbing 3.The long drum of the scrubber retains material for longer, more vigorous washing for complete separation 4.One high output electrical motor driving a gear system providing efficient torque 5.Adjustable rotary speed 6.The water with high pressure flushed the inwall of drum 7.Can accept material up to 230mm 8.Mechanical sealing of inlet chute – minimal spillage when over feeding 9.Drive loads absorbed within the drive frame and pivoting drive frame design – Foundations only have to support vertical load and are not critical for alignment ie minimal cost 10.Shell design less mass than conventional roller supported units – installation craneage requirement reduced

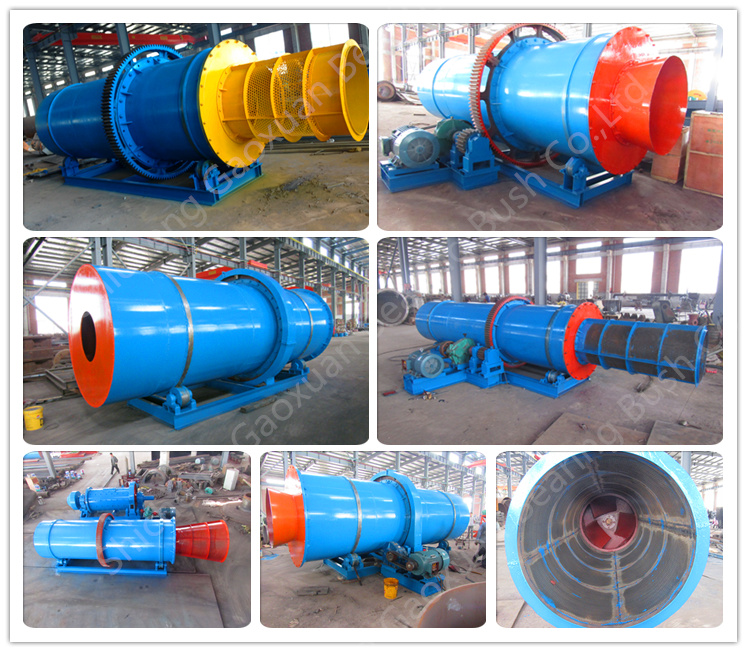

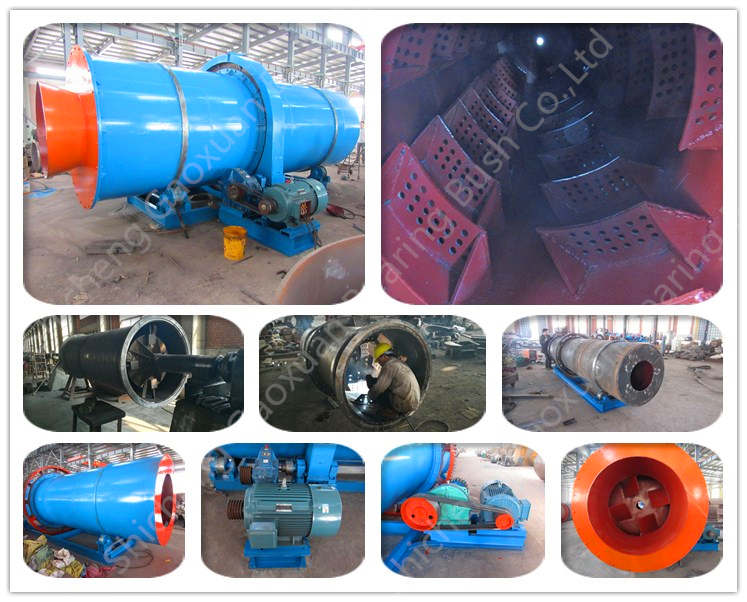

Structure

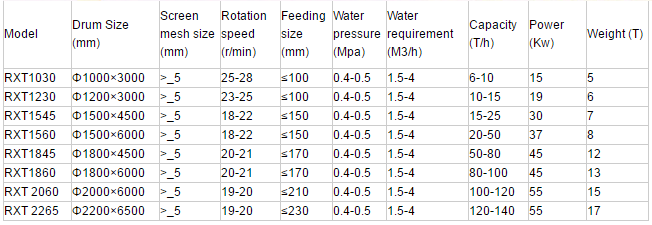

The Rotary drum scrubber spins slowly, similar to a giant washing machine. It churns the fines and oversize and water together, vigorously breaking up the soil matrix as well as liberating the target mineral from tough clay, schist's and rock. After the fine (soil) is separated, the material is moved into the screen. The rotating screen separates the oversize material from the fines (the fines are usually termed or categorized into less than 8mm). Most of the freely (gravity) recoverable gold and or other recoverable mineral is contained in the – 8mm fines. This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spirals, jigs etc. Technical Parameter

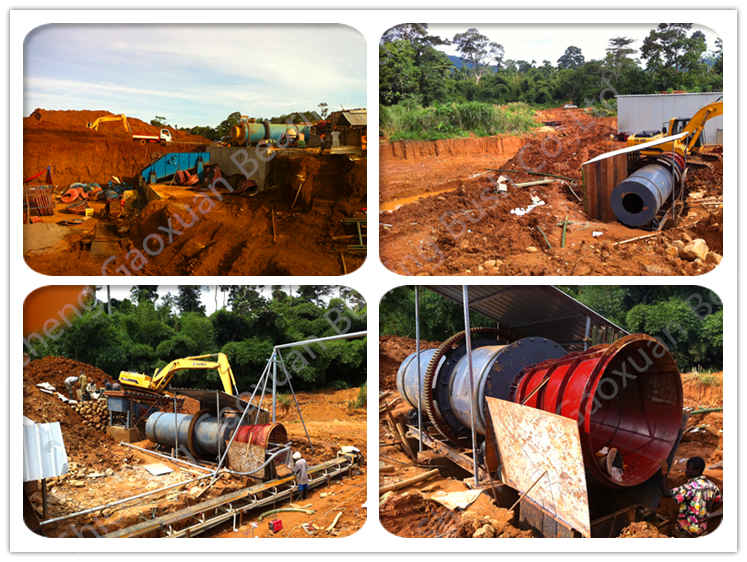

Application

RXT Rotary Scrubber is the most advanced ore washing equipment at present in China. It is able to de-slime of the sand and stone, the drum inside is equipped with single or doublelayer round screen can get 2 to 3 different size of sand stone products, it is widely used to the washing of manganese, iron, limestone, tungstenore, silica and so on.

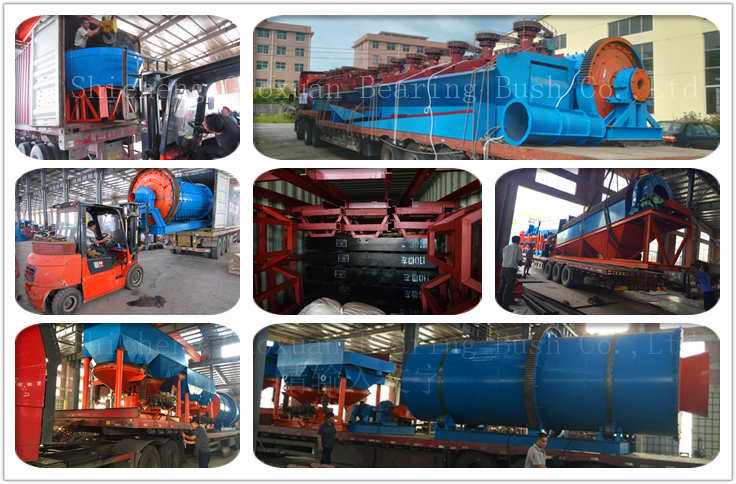

Packaging & Shipping
